S+S REGELTECHNIK室温，湿度和温度传感器
HYGRASGARD® FSFTM - Modbus

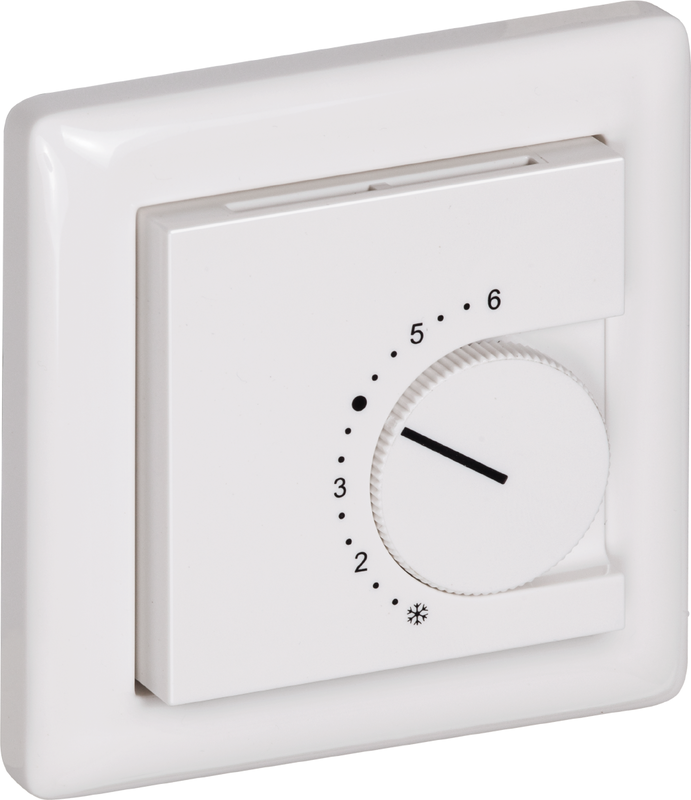

房间传感器和测量转换器HYGRASGARD® FSFTM -Modbus在墙内
外壳，可选配电位计，用于测量相对湿度和
空气温度 和设定值调整。计算以下参数
内部测量值：相对湿度[％r。H.]，绝对湿度[g /m³]，
混合比[g / kg]，露点温度[°C]，焓[kJ / kg]（忽略大气）
压力）和室温[°C]。通过Modbus接口查询参数。
数字，长期稳定的传感器用于湿度和温度测量。
相对 湿度[％r。H.]是水蒸气分压除以的商
各个气体温度下的饱和蒸气压。
入墙式传感器安装在高品质的面板开关程序中，最好是品牌
Gira，Berker，Merten，Jung，Siemens或Busch-Jaeger（使用入墙式适配器，无设定点）
可单独调节或与灯开关，插座连接，
等等
它用于非侵蚀性，无尘环境，制冷，空调和
洁净室技术，室内空间，如客厅，办公室，酒店等。
湿度：0 ... 100％r。H.
温度：0 ... + 50°C
输出：Modbus
enclosure, optionally with potentiometer, is used to measure the relative humidity and
temperature of the air, and for setpoint adjustment. The following parameters are calculated
internally from the measured values: relative humidity [% r. H.], absolute humidity [g ⁄ m³],
mixture ratio [g ⁄ kg], dew point temperature [°C], enthalpy [kJ ⁄ kg] (ignoring atmospheric air
pressure) and room temperature [°C]. The parameters are queried via the Modbus interface.
A digital, long-term stable sensor is used for humidity and temperature measurement.
Relative humidity [% r. H.] is the quotient of water vapour partial pressure divided by the
saturation vapour pressure at the respective gas temperature.
The in-wall sensor is mounted in high-quality panel switch programmes, ideally of the brands
Gira, Berker, Merten, Jung, Siemens or Busch-Jaeger (using in-wall adapters, no setpoint
adjustment possible) either individually or in combination with light switches, socket outlets,
etc.
It is used in non-aggressive, dust-free environments, in refrigeration, air conditioning and
clean room technology, and in interior rooms, such as living rooms, offices, hotels, etc.
Humidity: 0...100 % r. H.
Temperature: 0...+50 °C
Output: Modbus
Type
FSFTM-MODBUS
FSFTM-MODBUS P
价格
***
类型
温度传感器
品牌
S+S REGELTECHNIK
