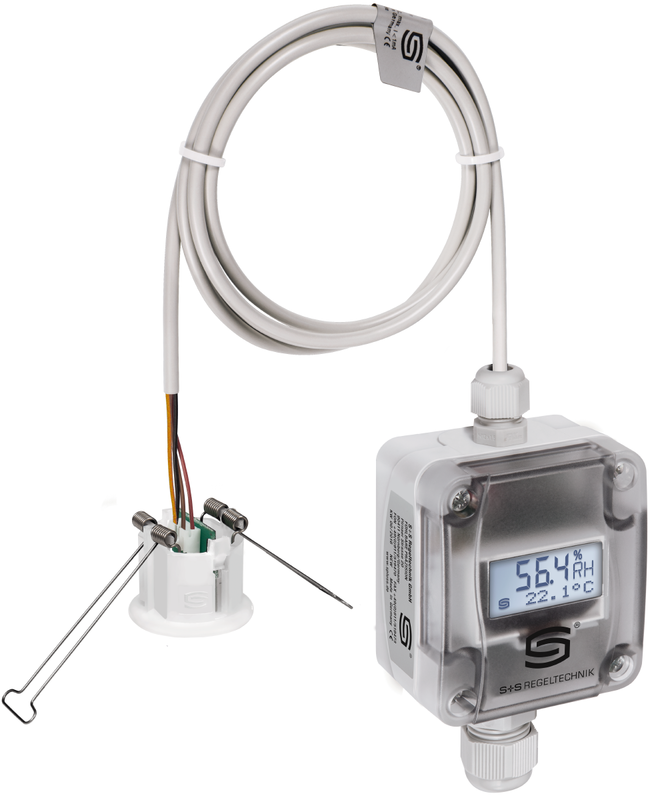

天花板内置湿度和温度传感器
HYGRASGARD®DFTF -Modbus
可校准湿度和温度传感器 HYGRASGARD® DFTF -Modbus 措施
空气的相对湿度和温度。它可以转换被测量的湿度和
温度变为0 - 10 V或4 ... 20 mA的标准信号，可带/不带
可选的显示屏。
它配备了四个可切换的温度范围。相对湿度（％rH）是
水蒸汽分压除以饱和蒸气压的商
各自的气体温度。测量传感器专为精确检测而设计
温度和湿度。数字，长期稳定的传感器用作测量
用于湿度和温度测量的元件。用户进行微调
是可能的。
安装在天花板上的传感器用于非侵蚀性，无尘环境中并使用
用于安装在走廊，办公室以及住宅和住宅的吊顶中
商业建筑。连接头可插拔，安装快捷方便。
测量传感器安装在单独的外壳中。
测量范围湿度：0 ... 100％r。H.
测量范围温度：-35 ... + 75°C，-35 ... + 35°C，0 ... + 50°C，0 ... + 80°C，
The calibratable humidity and temperature sensor HYGRASGARD® DFTF - Modbus measures
the relative humidity and temperature of air. It converts the measurands humidity and
temperature into a standard signal of 0 - 10 V or 4...20 mA, and is available with ⁄ without
an optional display.
It is equipped with four switchable temperature ranges. Relative humidity (in % r.H.) is the
quotient of water vapour partial pressure divided by the saturation vapour pressure at the
respective gas temperature. The measuring transducers are designed for exact detection
of temperature and humidity. A digital, long-term stable sensor is used as a measuring
element for humidity and temperature measurement. Fine adjustment by the user
is possible.
The ceiling-installed sensor is used in non-aggressive, dust-free environments and is used
for installation in suspended ceilings in corridors, offices, as well as in residential and
commercial buildings. The connecting head is pluggable for quick, easy mounting.
The measuring transducer is accommodated in a separate enclosure.
Measuring Range Humidity: 0...100 % r. H.
Measuring Range Temperature: -35... +75°C, -35... +35°C, 0... +50°C, 0... +80°C,
Type/产品型号
DFTF-MODBUS
DFTF-MODBUS DISPLAY
DFTF-U
DFTF-U DISPLAY
DFTF-I
DFTF-I DISPLAY
