FSFTM-CO2 MODBUS室内温度湿度和CO2测量传感器
收藏
收藏
***
- 产品详情
- 产品参数
- 产品评论

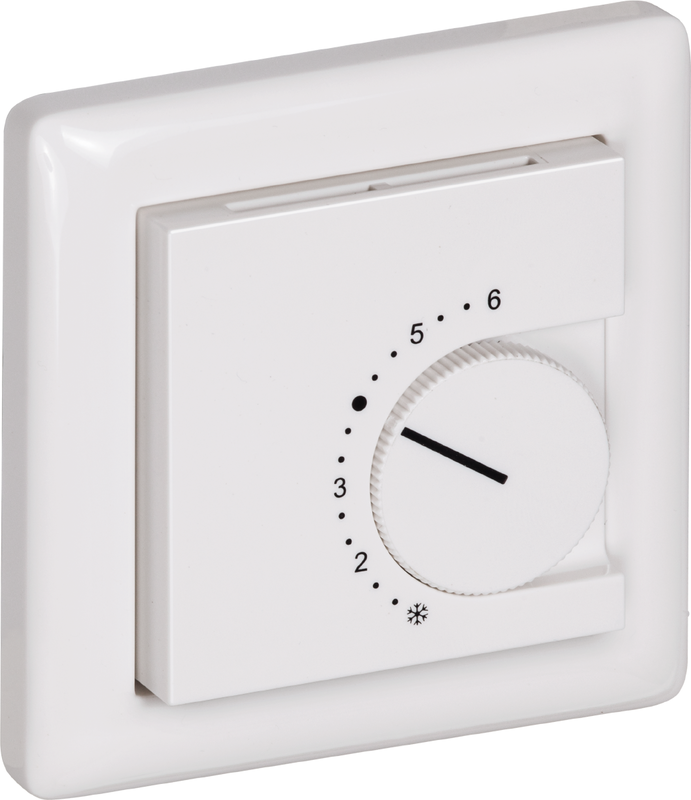

Room humidity, temperature and CO2 sensor or measuring transducer
AERASGARD® FSFTM-CO2 - Modbus
房间传感器和测量转换器AER ASGARD® FSFTM - CO2 -Modbus
在墙内的外壳，可选配电位计，用于测量CO2含量，
相对湿度和空气温度，以及设定值调整。
通过Modbus接口查询测量值。
使用光学NDIR传感器（非分散的）测量空气中的CO 2含量
红外技术）。数字，长期稳定的传感器用于湿度和温度
测量。相对湿度[％r。H.]是水蒸气分压的商
除以相应气体温度下的饱和蒸气压。
入墙式传感器安装在高品质的面板开关程序中，最好是品牌
Gira，Berker，Merten，Jung，Siemens或Busch-Jaeger（使用入墙式适配器，无设定点）
可单独调节或与灯开关，插座等组合使用。
它用于非侵蚀性，无尘环境，制冷，空调和
洁净室技术，室内空间，如客厅，办公室，酒店等。
测量范围CO 2：0 ... 5000 ppm
湿度：0 ... 100％r。H.
温度：0 ... + 50°C
输出：Modbus
in the in-wall enclosure, optionally with potentiometer, is used to measure the CO2 content,
relative humidity and temperature of the air, and for setpoint adjustment.
The measured values are queried via the Modbus interface.
The CO2 content of the air is measured using an optical NDIR sensor (non-dispersive
infra-red technology). A digital, long-term stable sensor is used for humidity and temperature
measurement. Relative humidity [% r. H.] is the quotient of water vapour partial pressure
divided by the saturation vapour pressure at the respective gas temperature.
The in-wall sensor is mounted in high-quality panel switch programmes, ideally of the brands
Gira, Berker, Merten, Jung, Siemens or Busch-Jaeger (using in-wall adapters, no setpoint
adjustment possible) either individually or in combination with light switches, socket outlets, etc.
It is used in non-aggressive, dust-free environments, in refrigeration, air conditioning and
clean room technology, and in interior rooms, such as living rooms, offices, hotels, etc.
Measuring Range CO2: 0...5000 ppm
Humidity: 0...100 % r. H.
Temperature: 0...+50 °C
Output: Modbus
Type/产品型号
FSFTM-CO2-MODBUS
FSFTM-CO2-MODBUS P.
