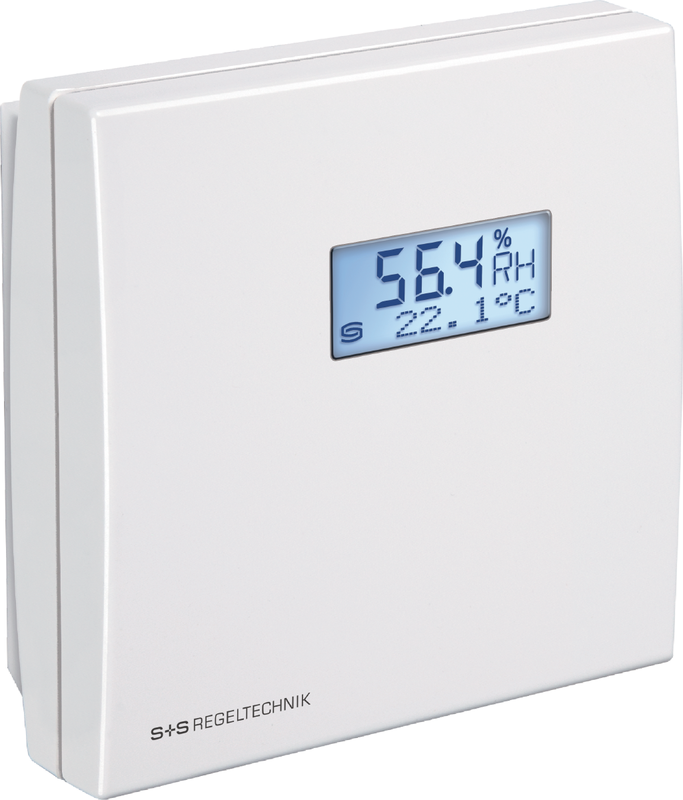

Room humidity sensor 室内湿度传感器
HYGRASGARD® RFF
暖通空调行业的优质产品，精度3％rH
可校准湿度和温度传感器HYGR ASGARD® RFF / RFTF测量空气的相对湿度和/或温度。它将被测量的湿度和温度转换为0 - 10 V或4 ... 20 mA的标准信号，可在带或不带可选显示器（用于显示实际湿度和实际温度）的情况下，在塑料制成的优雅外壳中使用，带卡扣式盖子，底座带4孔附件，可安装在垂直或水平安装的墙内冲洗盒上，预先设置断点，用于墙上电缆入口或不锈钢外壳（顶部和底部）是不锈钢，盖子是拧紧的），防破坏版本，例如学校，军营和公共建筑。相对湿度（％r .H。）是水蒸气分压除以相应气体温度下的饱和蒸气压的商。
它用于非侵略性，无尘环境，制冷，空调和洁净室技术，室内空间，如客厅，办公室，酒店，工程室，会议和会议设施。测量传感器设计用于精确检测温度和湿度。数字，长期稳定的传感器用作湿度和温度测量的测量元件。用户可以进行微调。
湿度：0 ... 100％rH
输出：0-10V或4 ... 20mA
Quality product for HVAC sector, accuracy 3 % r.H.
The calibratable humidity and temperature sensor HYGRASGARD® RFF ⁄ RFTF measures the relative humidity and ⁄ or the temperature of the air. It converts the measurands humidity and temperature into a standard signal of 0 - 10 V or 4...20 mA, and is available with or without an optional display (for displaying actual humidity and actual temperature), in an elegant enclosure made of plastic, with snap-on lid, base with 4-hole attachment for installation on vertically or horizontally installed in-wall flush boxes, with predetermined breaking point for on-wall cable entry, or in an enclosure made of stainless steel (top and bottom part are of stainless steel, the lid is screwed on), vandal-proof version e.g. for schools, military barracks, and public buildings. Relative humidity (in % r. H.) is the quotient of water vapour partial pressure divided by the saturation vapour pressure at the respective gas temperature.
It is used in non-aggressive, dust-free environments, in refrigeration, air conditioning and clean room technology, in interior rooms, such as living rooms, offices, hotels, engineering rooms, meeting and conference facilities. The measuring transducers are designed for exact detection of temperature and humidity. A digital, long-term stable sensor is used as a measuring element for humidity and temperature measurement. Fine adjustment by the user is possible.
Humidity: 0...100% r.H.
Output: 0-10V or 4...20mA
RFF-U
RFF-U DISPLAY
RFF-I
RFF-I DISPLAY
