Duct humidity sensor
管道湿度传感器
HYGRASGARD® KFF
校准的管道湿度/温度传感器HYGR ASGARD® KFF / KFTF (±2.0%)或KFF - 20 / KFTF - 20 (±1.8%),用塑料烧结过滤器(任选的金属烧结过滤器),接线盒外壳由耐冲击的塑料,外壳盖,带快速锁定螺丝,带/不带可选显示屏。它测量空气的相对湿度和/或温度,并将被测量转换为0 - 10 V或4 ... 20 mA的标准信号。它具有四个可切换的温度范围,适用于制冷,空调,通风和洁净室技术中的非侵蚀性无尘环境。相对湿度(%r .H。)是水蒸气分压除以相应气体温度下的饱和蒸气压的商。这些测量传感器设计用于精确检测湿度。数字长期稳定传感器用作湿度测量的测量元件。用户可以进行微调。
湿度:0 ... 100%rH
输出:0-10V或4 ... 20mA

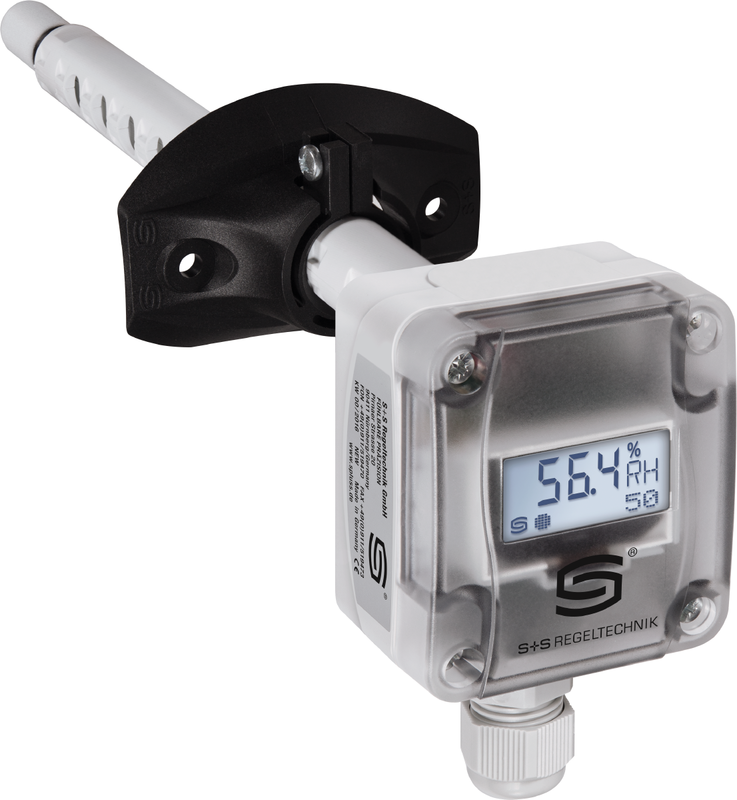

Calibratable duct humidity ⁄ temperature sensor HYGRASGARD® KFF ⁄ KFTF (± 2.0 %) or KFF - 20 ⁄ KFTF - 20 (± 1.8 %), with plastic sinter filter (optional metal sinter filter), terminal box enclosure made of impact-resistant plastic, enclosure cover with quick-locking screws, with ⁄ without optional display. It measures the relative humidity and ⁄ or the temperature of the air and converts the measurand into a standard signal of 0 - 10 V or 4...20 mA. It has four switchable temperature ranges and is applied in non-aggressive dust-free atmospheres in refrigeration, air conditioning, ventilation and clean room technology. Relative humidity (in % r. H.) is the quotient of water vapour partial pressure divided by the saturation vapour pressure at the respective gas temperature. These measuring transducers are designed for exact detection of humidity. A digital long-term stable sensor is used as measuring element for humidity measurement. Fine adjustment by the user is possible.
Humidity: 0...100% r.H.
Output: 0-10V or 4...20mA
Output type
U currentI - current
Sensor-Toleranz Feuchte
2 %1.8 %
Type | Display | Output type | Sensor-Toleranz Feuchte | Enclosure name | Item No. |
| |
---|
KFF-U |
| U current | 2 % | Tyr 1 | 1201-3111-0000-029 |
|
|
KFF-20-U |
| U current | 1.8 % | Tyr 1 | 1201-3111-0000-030 |
|
|
KFF-U DISPLAY |
| U current | 2 % | Tyr 1 | 1201-3111-0200-029 |
|
|
KFF-I |
| I - current | 2 % | Tyr 1 | 1201-3112-0000-029 |
|
|
KFF-20-I |
| I - current | 1.8 % | Tyr 1 | 1201-3112-0000-030 |
|
|
KFF-I DISPLAY |
| I - current | 2 % | Tyr 1 | 1201-3112-0200-029 |
|
|
KFF-20-U TYR-2 DISPLAY |
| U current | 1.8 % | Tyr 2 | 1201-8111-0400-030 |
|
|
KFF-20-I TYR-2 DISPLAY |
| I - current | 1.8 % | Tyr 2 | 1201-8112-0400-030 |
|
