室内温湿度传感器

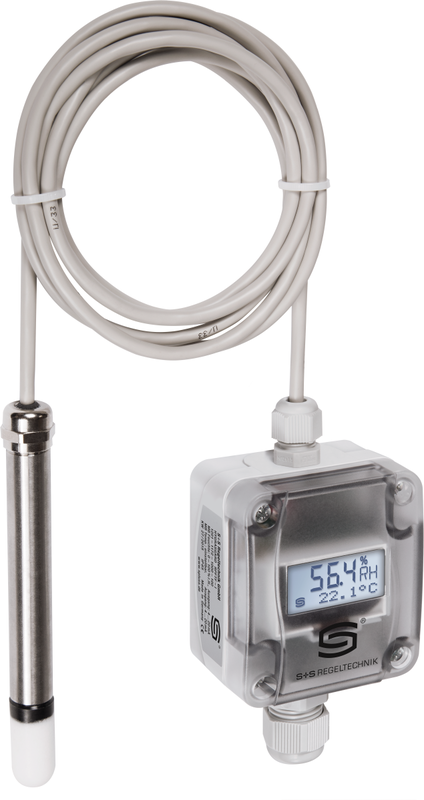

HYGRASGARD® RPFF / RPFTF


可校准的摆室湿度和温度传感器HYGRASGARD®RPFF / RPFTF用塑料烧结过滤器测量相对湿度和空气温度。它将被测量的湿度和温度转换为0 - 10 V或4 ... 20 mA的标准信号,并可带/不带可选显示器。它配备了四个可切换的温度范围。相对湿度(%r .H。)是水蒸气分压除以相应气体温度下的饱和蒸气压的商。它用于非侵蚀性,无尘环境,制冷,空调和洁净室技术,酒店,工程室,会议和会议设施。测量传感器设计用于精确检测温度和湿度。数字,长期稳定的传感器用作湿度和温度测量的测量元件。用户可以进行微调。该传感器适用于天花板和管道安装或集成在设备中。

湿度:0 ... 100%rH, 温度:-35°C ... + 80°C
输出:0-10V或4 ... 20mA
塑料烧结过滤器

The calibratable pendulum room humidity and temperature sensor HYGRASGARD® RPFF⁄RPFTF, with plastic sinter filter measures the relative humidity and the temperature of the air. It converts the measurands humidity and temperature into a standard signal of 0 - 10 V or 4...20 mA, and is available with ⁄ without an optional display. It is equipped with four switchable temperature ranges. Relative humidity (in % r. H.) is the quotient of water vapour partial pressure divided by the saturation vapour pressure at the respective gas temperature. It is used in non-aggressive, dust-free environments, in the refrigeration, air conditioning and clean room technology, hotels, engineering rooms, meeting and conference facilities. The measuring transducers are designed for exact detection of temperature and humidity. A digital, long-term stable sensor is used as a measuring element for humidity and temperature measurement. Fine adjustment by the user is possible. The sensor is suitable for ceiling and duct installation or for integration in equipment.


Humidity: 0...100% r.H., Temperature: -35°C...+80°C
Output: 0-10V or 4...20mA
plastic sinter filter


TypeOutput typeTemperature-measuring rangeItem No.
RPFF-U U current
1201-1171-0000-100

RPFF-U DISPLAY U current
1201-1171-0200-100

RPFTF-U U currentmulti-range switching (see table) -35…+35°C; -35…+75°C; 0…+50°C; 0…+80°C1201-1171-1000-100

RPFTF-U DISPLAY U currentmulti-range switching (see table) -35…+35°C; -35…+75°C; 0…+50°C; 0…+80°C1201-1171-1200-100

RPFF-I I - current
1201-1172-0000-100

RPFF-I DISPLAY I - current
1201-1172-0200-100

RPFTF-I I - currentmulti-range switching (see table) -35…+35°C; -35…+75°C; 0…+50°C; 0…+80°C1201-1172-1000-100

RPFTF-I DISPLAY I - currentmulti-range switching (see table) -35…+35°C; -35…+75°C; 0…+50°C; 0…+80°C1201-1172-1200-100
